N-006 Pivot Holes Tools - Tapered (Spin Blades)

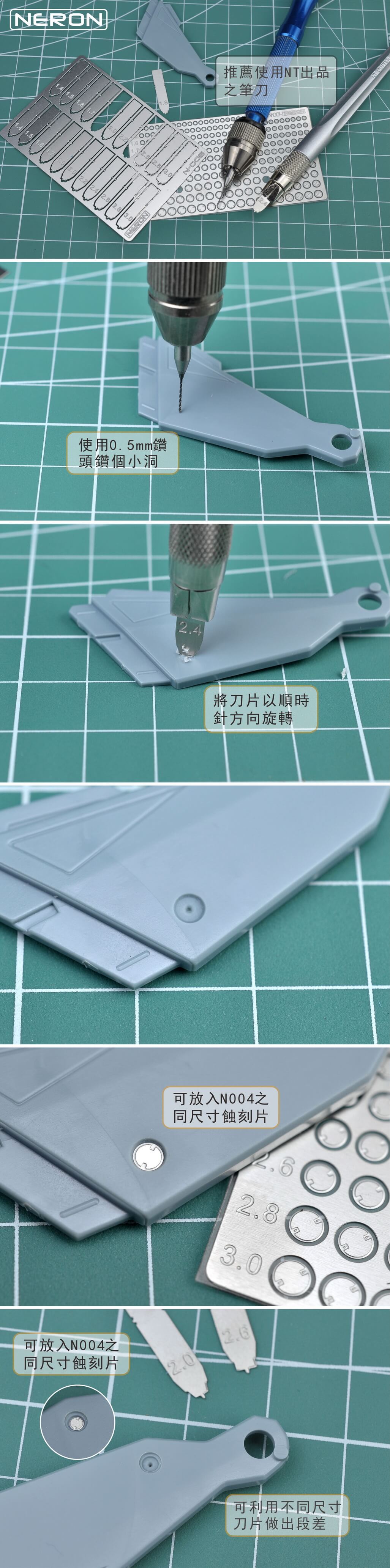

Steps for Use:

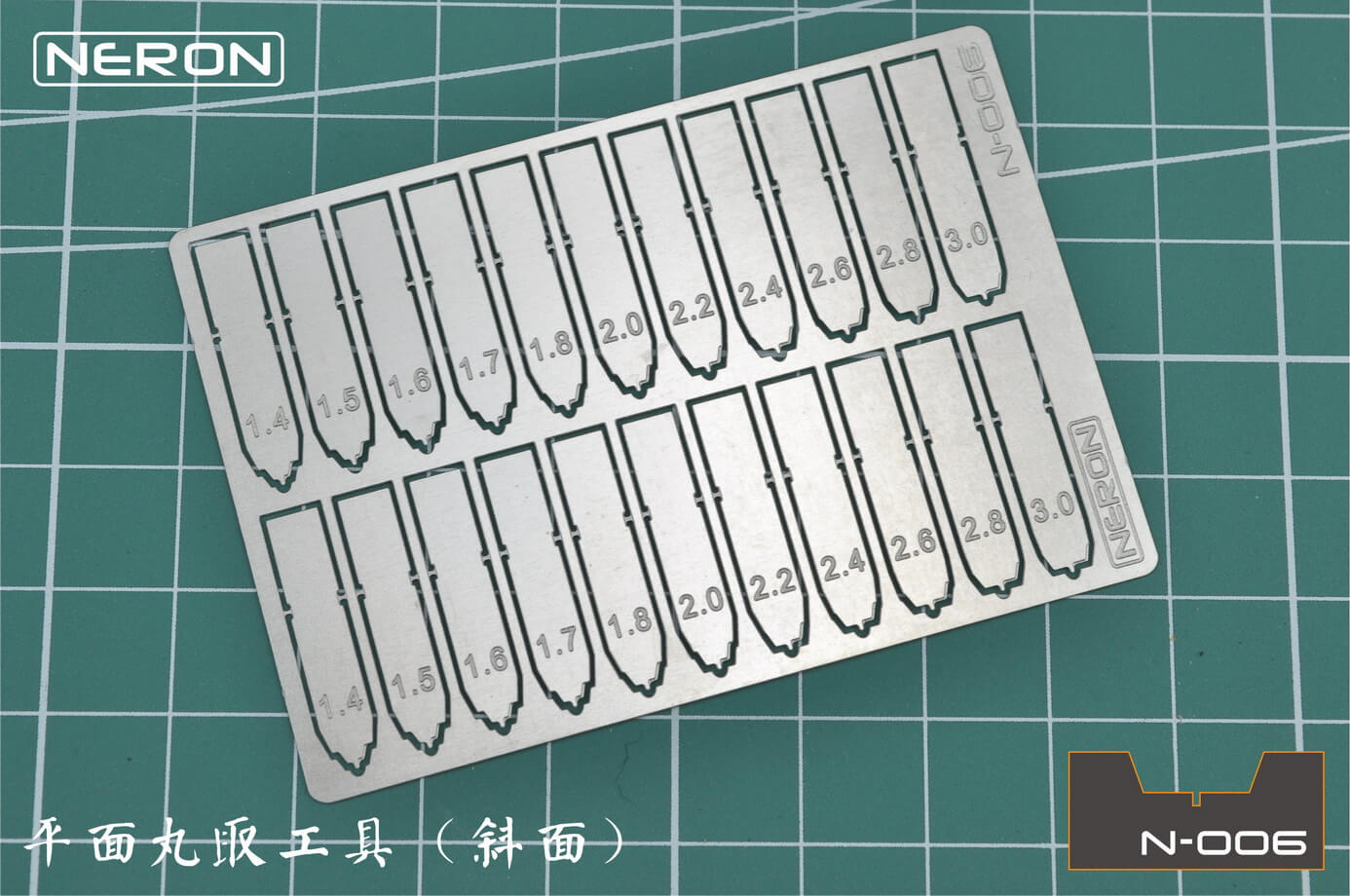

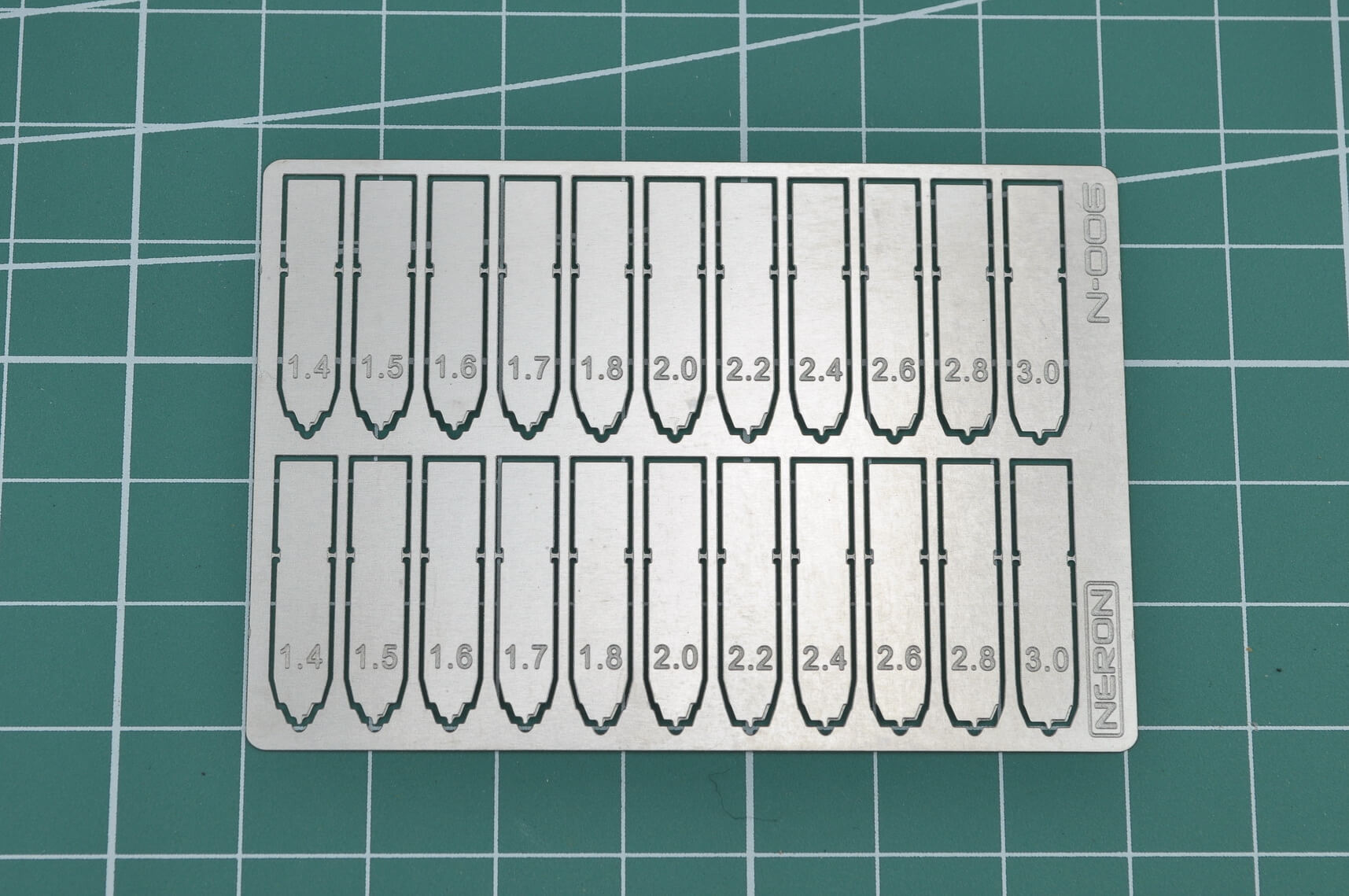

1. Select the etched blade of the desired size (1.4–3.0 mm, 11 sizes available).

2. Install the etched blade into the handle. Compatible with:
   MH-16 / MH-17 / MH-18 Multifunction Handle
   Mr. Pro XXX Chisel Handle
   MADMAX Multifunction Handle with Cap (Anodized Aluminum Body)
   Neron Pin Vise



3. Drill a small hole with a 0.5 mm drill bit.

4. Rotate the blade clockwise to create the pivot hole.

5. The pivot hole can be further refined using a blade of the same size from N-004 Pivot Holes Details.
